Boron Carbide Your current Location>>Home>>Boron Carbide>> Boron Carbide

Product Description:

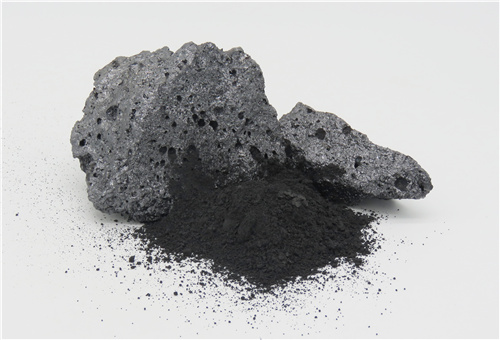

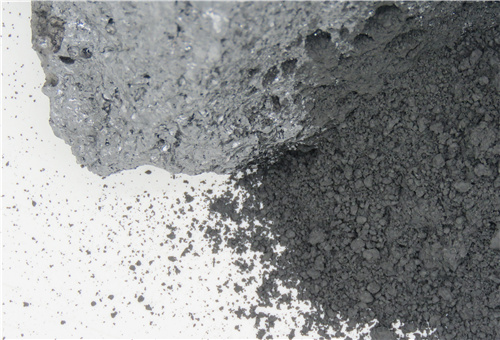

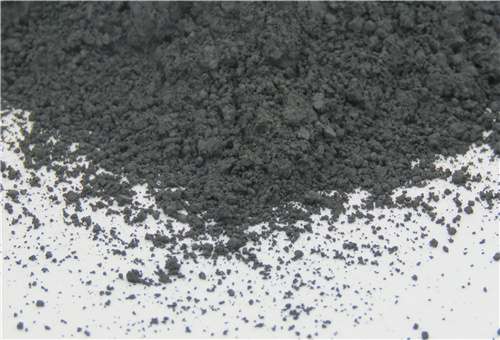

Boron Carbide, black powder, is the hardest of the conventional abrasives. Its Mohs hardness is 9.36, melting point 24500c, density 2.51g/cm³. It has following unique features: neutron absorbing, semi-conductivity, low thermal conductivity, high grinding efficiency and no reaction with either acids or alkali etc. Boron carbide is widely used to grind and polish hard metal alloy, super-hard metal, high carbide steel, jewel, hard ceramic and other hard materials, and to manufacture wear-resisting parts, metal cutting tools, nozzles and neutron-absorbing rods, used as metal additive for compound materials for military planes and as raw materials for metal boride, metal ceramic, boron steel, boron alloy and for special welding and refractory materials.

Chemical Composition (% by weight)

Grit Size	Size of basic grain (μm)	B	C	Fe₂O3	Si	BC
F60	250	77-80	17-19	0.25-0.45	0.2-0.4	96-98
F70	212
F80	180
F90	150
F100	125
F120	106
F150	75
F180	75-63	76-79	17-19	0.25 -0.45	0.2 -0.4	95-97
F220	63-53
F230	D50=53
F240	D50=44.5
F280	D50=36.5	75-79	17-20	0.3 -0.6	0.3-0.8	93-97
F320	D50=39.5
F360	D50=22.8
F400	D50=17.3
F500	D50=12.8	74-78	17-20	0.4 -0.8	0.4 -1.0	90-94
F600	D50=9.3
F800	D50=6.5
F1000	D50=4.5	73-77	17-20	0.5-1.0	0.4-1.2	89-92
F1200	D50=3.0	73-77	17-20	0.5-1.0	0.4-1.2	89-92
60#-150#	250-75	76-80	18-21	<0.3	<0.5	95-98
Mesh -100	<150	75-79	17-22	<0.3	<0.5	94-97
Mesh -200	<90	74-79	17-22	<0.3	<0.5	94-97
Mesh -325	<45	73-78	19-22	<0.5	<0.5	93-97
-25μm	<25	73-78	19-22	<0.5	<0.5	91-95
-10μm	<10	72-76	18-21	<0.5	<0.5	90-92

Packing way: 50kgs packed in iron drum, or can be packed on request.
You are welcome to contact our sales department if you are interested or want to learn more information.
